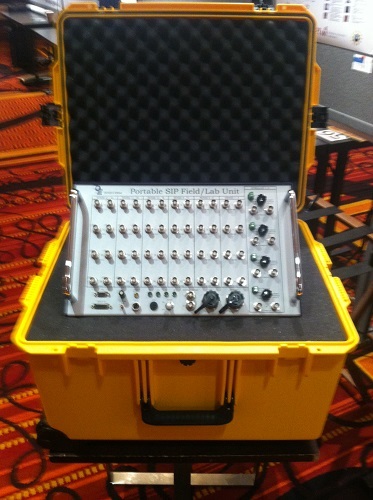

Portable Field/Lab Spectral Induced Polarization (SIP) Unit (PSIP)

The PSIP is a low-cost high-performance multi-channel geophysical instrument optimized for laboratory and in situ near surface SIP, conventional resistivity, time-domain induced polarization and self-potential measurements.

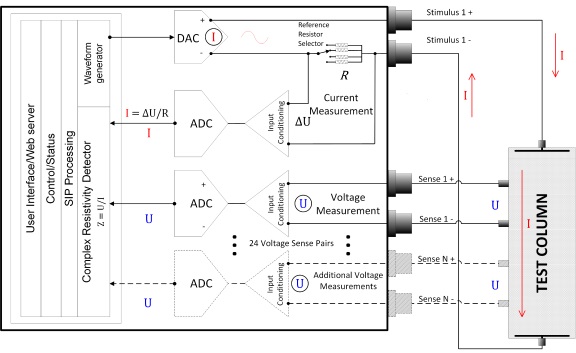

portable field lab spectral induced polarization sip psip diagram.

Functional Block Diagram

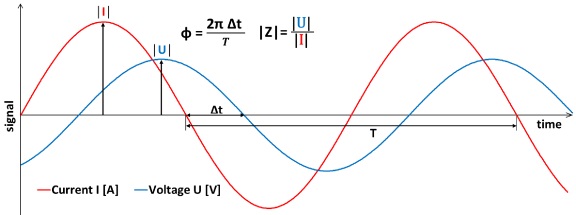

spectral induced polaraization sip waveform

Theory of Operation



Measurement types:
o Spectral Induced Polarization (SIP)
o Conventional Resistivity
o Self-potential
o Time-domain Induced Polarization

Applications:
o Laboratory experimental setups including
o columns, 2-D and 3-D tanks
o Laboratory physically simulated surface and borehole environments
o Small scale surface and shallow borehole field environments

Features:
o 1mHz - 50kHz frequency range (Base Configuration - 1mHz - 20kHz)
o Up to 4 simultaneous test setups
o Simultaneous sampling of up to 24 voltage sense pairs
o Actively driven electrode guards/shields for overcoming capacitive coupling and noise
o Multiple units can be connected together for increased channel capacity
o User selectable (4) reference internal resistor values
o External reference resistor
o Web browser user interface
o Water-resistant field/travel case

Stimulus Outputs [1..4]: (Base Configuration - 2 Outputs)
o Type: Differential
o Voltage: ±10V (20V p-p)
o Current: 10mA (per channel)
o 20mA (all channels)
o Impedance: 100m

Sense Inputs [1..24]: (Base Configuration - 4 Inputs)
o Type: Differential
o Voltage: ±10V (20V p-p)
o Differential Impedance: 4G/1.25pF
o Common Mode Impedance: 1G/4pF

Interfaces:
o Ethernet
o USB Type A
o VGA
o I2C
o Analog Ground
o Chassis Ground
o External Trigger In
o External Trigger Out
o External Reference Resistor x 4

Power Input:
o 12V DC Nominal

Dimensions:
o Unit: 17.16'' x 10.53'' x 7.69''
o Case: 24.6'' x 19.7'' x 14.4''





_________________________________________________________________

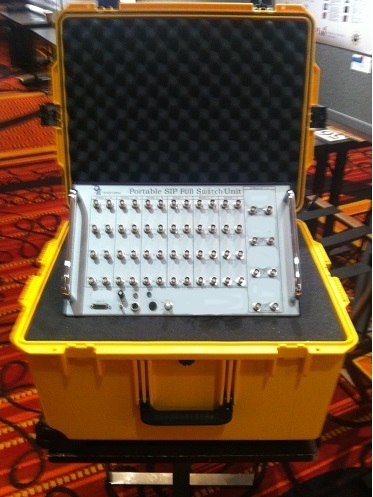

Portable Spectral Induced Polarization (SIP) Full Switch Unit (PSFS)

The PSFS is a switching unit designed specifically as an accessory to the PSIP. The PSFS maintains the driven guards of the PSIP for optimal signal quality.



Configurations:
o 4 x 24
o 4 x 48
o Dual 4 x 24

Larger Configuration Support:
o PSFS units can be ganged for larger confgurations


Power Input:
o PSIP provides power

Dimensions:
o Unit: 17.16'' x 10.53'' x 7.69''
o Case: 24.6'' x 19.7'' x 14.4''



_________________________________________________________________



spectral induced polarization sip sonde

Inputs

Outputs

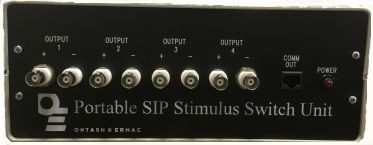

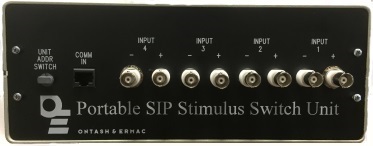

PSIP Stimulus Switch Unit

PSIP accessory for time domain and self potential measurements. Power and control from PSIP.

Dimensions:

o Length -- 10"
o Width -- 7.3"
o Depth -- 3.9"

_________________________________________________________________



spectral induced polarization sip sonde

Inputs

Outputs

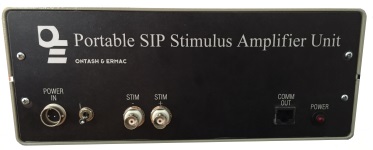

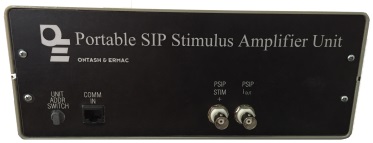

PSIP Stimulus Amplifier Unit

PSIP accessory for measurements requiring more power than PSIP provides.

Stimulus Output:
o Type: Differential
o Voltage: ± 25V (50V p-p)
o Current: 1 A

Dimensions:

o Length -- 10"
o Width -- 7.3"
o Depth -- 3.9"

_________________________________________________________________

OEM SIP Sonde Electronics

Complete electronics, firmware and acquisition and control software that is suitable for integration into a customer's sonde / borehole logging system. SIP stimulus and sensing performed entirely by SIP Sonde Electronics within the borehole. Modular electronics design supports application specific focusing and electrode arrangements by simply adding modules.

Power Input:
o 12V DC Nominal

Control Input:
o Ethernet

Dimensions:
o Length -- 48"-72" -- depending on electrode configuration
o Diameter --- 1.5" inside diameter required



_________________________________________________________________

spectral induced polarization sip sonde



Coming Soon

SIP Sonde

Complete sonde including enclosure, electronics, firmware and acquisition and control software.
